VIS-SWIR  imaging sensors

Imaging electronic sensors sensitive in visible, near infrared, short wavelength infrared spectral bands have found mass applications in industry, defense, security, science, environmental protection, medicine etc.   Imaging sensors sensitive only in VIS-NIR range are almost exclusively silicon chips manufactured using a series of technologies: CCD, CMOS, ICCD, EMCCD, EBAPS, sCMOS in color or monochromatic versions. Color VIS/NIR sensors are sensitive to light only in visible range when monochromatic VIS/NIR sensors are sensitive up to about 1000nm.  SWIR sensors are mostly InGaAs imaging sensors  offered in several versions:   standard non cooled sensitive in range from about 900nm to 1700nm; standard cooled sensors  - about  1000nm to  2200nm; and expanded non cooled  - about 600nm to  1700nm.

 Inframet offers a set of three  stations for testing VIS-SWIR imaging sensors: VIT, SIT and SOL.  The stations differ in design and test capabilities.   In simplification it can be said that VIT is an image projector that  projects images of continuously regulated light intensity at a dozen of narrow spectral  bands distributed in VIS-SWIR range;  SIT is a calibrated light souce  of continuously regulated light intensity and continously regulated wavelength; SOL is calibrated light souce  of continuously regulated light intensity and step regulated spectral band.

SIT test station

VIT test station

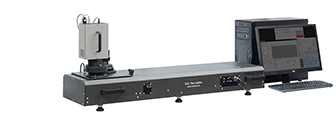

SOL test station



VIT test station ebables measurement of imaging,  radiometric  and photometric parameters at a dozen spectral bands; SIT- radiometric   parameters  at continuously regulated wavelength;  SOL -  radiometric   parameters  at step  regulated wavelength and photometric parameters.

If you have further questions please contact us.
